SUPPORT REINFORCEMENT WITH STEEL PLATE AND FULL THREAD SCREWS
RAPID® full thread screws transfer the support load from the timber section directly
to the steel plate through the screw heads. They distribute the force evenly into the end grain of
the support.

TRANSVERSE TENSILE REINFORCEMENT FOR NOTCHING
The structural engineer must review the requirement. If the transverse tensile load is too high for the timber section, full thread screws will be used to reinforce and secure the beam in the red
line area.

REINFORCEMENT OF OPENINGS WITH LONG FULL THREAD SCREWS
The area marked in red indicates the risk of cracking. The same thread length is required above

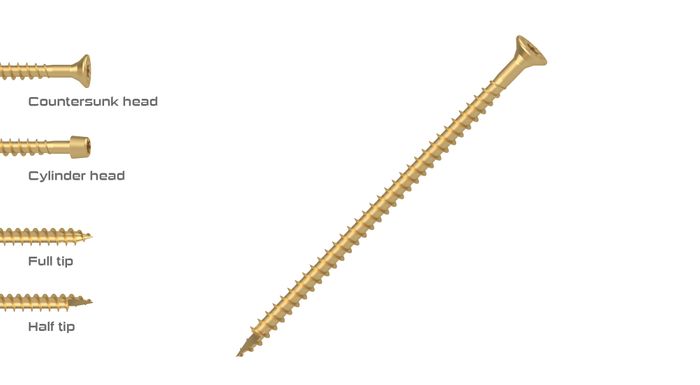

and below this marking. Long full thread screws with cylinder heads are recommended. They can be positioned exactly using long bits.

CROSS LAMINATED TIMBER (CEILING RIB)
Shear-resistant crosswise screwing for cross laminated timber ceilings.

TIP: the connection should first be pulled tightly together using e.g., partial thread screws. The pitch of the screws should be oriented in the direction of the main load.

CONNECTIONS AT THE BASE POINT OF THE SUPPORT
RAPID® full thread screws with a countersunk head are best suited for this application. Shear forces and wind suction are effectively transferred. The RAPID® offers a high degree of security with 500 hours of corrosion resistance.

Info: In areas exposed to weather (use class 3), stainless steel screws should be used in accordance with the timber structure design code. The executive person should perform a final assessment of the necessary corrosion protection.
